Heavy Duty Scissor Lift Table With Loading Capacity 8.0ton

Description

Heavy Duty Scissor Lift Table For Sale 8.0ton

Lift table a lifting device used to transport personnel and items to high or deep places in buildings. It suits many industries, including container, mold manufacturing, automotive manufacturing, animal husbandry, wood processing, chemical filling, automated production lines, Three-dimensional garages, dance performances, large exhibition halls, etc.

FULME uses high-quality hydraulic systems to lift heavy-duty goods or operators.

Our lift table has advantages such as a simple structure, large bearing capacity, high stability in lifting and lowering, simple maintenance in the later stage, and economic practicality.

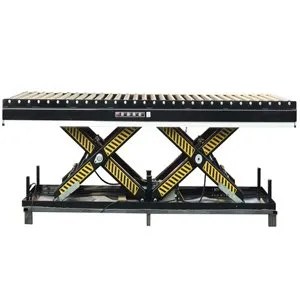

FULME can not only customize various types of countertops, such as ball bearings, rollers, steering, tilting, turntables, telescoping, etc. but also the guardrails and remote control switches can be selected according to actual needs.

The wide work surface can simultaneously carry items for work, making the range of high-altitude work larger.

With the characteristics of large load capacity, and smooth and accurate lifting, significantly solves the problems encountered by enterprises in various lifting operations in production.

Feature

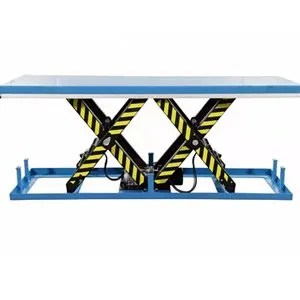

Heavy-Duty Industrial Scissor Lift Table

Product characteristics:

1.Max.load capacity 8000 kg and lift height 300-1050mm.

2. Electric Lifting.

3. Accept customized.

4. Heavy-duty design, sturdy and safe structure.

5. Adopt high-quality pump stations, the lifting of goods is stable and powerful.

6. Adopt an anti-pinch fork design, and the pivot part adopts a self-lubricating design to extend its service life.

7. There is an aluminum alloy safety gear strip under the countertop, which immediately stops descent when encountering obstacles to ensure safety.

8. The hydraulic system is equipped with safety valves to prevent overload operation; Equipped with a flow control valve, and an adjustable lowering speed.

9. The heavy-duty oil cylinder is equipped with an explosion-proof valve, which can prevent the lifting platform from falling quickly when the oil pipe bursts

10. Comply with European EN1570 standards and American ANSI/ASME safety guidelines.

Parameter

Model		HW2000D	HW4000D	HW8000D
Capacity	kg	4000	4000	8000
Lowered Height	mm	230	230	300
Raised Height	mm	1000	1000	1050
Platform Size	mm	2500×820	2500×850	3000×1200
Base Frame Size	mm	2460×640	2450×785	2500×900
Lift Time	sec	26-46	36-46	36-46
Power Pack		380V/50HZ,AC2.2kw	380V/50HZ,AC2.2kw	380V/50HZ,AC2.2kw
Net Weight	kg	265	360	560
